What Is TPM?

TPM (Total Productive Maintenance) is a holistic approach to equipment maintenance that strives to achieve perfect production:

  • No Breakdowns
  • No Small Stops or Slow Running
  • No Defects

In addition it values a safe working environment:

  • No Accidents

TPM emphasizes proactive and preventative maintenance to maximize the operational efficiency of equipment. It blurs the distinction between the roles of production and maintenance by placing a strong emphasis on empowering operators to help maintain their equipment.

The implementation of a TPM program creates a shared responsibility for equipment that encourages greater involvement by plant floor workers. In the right environment this can be very effective in improving productivity (increasing up time, reducing cycle times, and eliminating defects).

Traditional TPM Pillars

The traditional approach to TPM was developed in the 1960s and consists of 5S as a foundation and eight supporting activities (sometimes referred to as pillars).

Diagram of TPM with 5S Foundation and eight supporting pillars.
The traditional TPM model consists of a 5S foundation (Sort, Set in Order, Shine, Standardize, and Sustain) and eight supporting pillars.

The 5S Foundation

The goal of 5S is to create a work environment that is clean and well-organized. It consists of five elements:

  • Sort: eliminate anything that is not truly needed in the work area
  • Straighten: organize the remaining items
  • Shine: clean and inspect the work area
  • Standardize: create standards for performing the above three activities
  • Sustain: ensure the standards are regularly applied

It should be reasonably intuitive how 5S creates a foundation for well-running equipment. For example, in a clean and well-organized work environment, tools and parts are much easier to find, and it is much easier to spot emerging issues such as fluid leaks, material spills, metal shavings from unexpected wear, hairline cracks in mechanisms, etc.

The Eight TPM Pillars

The eight pillars of TPM are mostly focused on proactive and preventative techniques for improving equipment reliability.

PillarWhat Is It?How Does It Help?
Autonomous MaintenancePlaces responsibility for routine maintenance, such as cleaning, lubricating, and inspection, in the hands of operators.
  • Gives operators greater “ownership” of their equipment.
  • Increases operators’ knowledge of their equipment.
  • Ensures equipment is well-cleaned and lubricated.
  • Identifies emergent issues before they become failures.
  • Frees maintenance personnel for higher-level tasks.
Planned MaintenanceSchedules maintenance tasks based on predicted and/or measured failure rates.
  • Significantly reduces instances of unplanned stop time.
  • Enables most maintenance to be planned for times when equipment is not scheduled for production.
  • Reduces inventory through better control of wear-prone and failure-prone parts.
Quality MaintenanceDesign error detection and prevention into production processes. Apply Root Cause Analysis to eliminate recurring sources of quality defects.
  • Specifically targets quality issues with improvement projects focused on removing root sources of defects.
  • Reduces number of defects.
  • Reduces cost by catching defects early (it is expensive and unreliable to find defects through inspection).
Focused ImprovementHave small groups of employees work together proactively to achieve regular, incremental improvements in equipment operation.
  • Recurring problems are identified and resolved by cross-functional teams.
  • Combines the collective talents of a company to create an engine for continuous improvement.
Early Equipment ManagementDirects practical knowledge and understanding of manufacturing equipment gained through TPM towards improving the design of new equipment.
  • New equipment reaches planned performance levels much faster due to fewer startup issues.
  • Maintenance is simpler and more robust due to practical review and employee involvement prior to installation.
Training and EducationFill in knowledge gaps necessary to achieve TPM goals. Applies to operators, maintenance personnel and managers.
  • Operators develop skills to routinely maintain equipment and identify emerging problems.
  • Maintenance personnel learn techniques for proactive and preventative maintenance.
  • Managers are trained on TPM principles as well as on employee coaching and development.
Safety, Health, EnvironmentMaintain a safe and healthy working environment.
  • Eliminates potential health and safety risks, resulting in a safer workplace.
  • Specifically targets the goal of an accident-free workplace.
TPM in AdministrationApply TPM techniques to administrative functions.
  • Extends TPM benefits beyond the plant floor by addressing waste in administrative functions.
  • Supports production through improved administrative operations (e.g., order processing, procurement, and scheduling).

OEE and the Six Big Losses

Introduction to OEE

OEE (Overall Equipment Effectiveness) is a metric that identifies the percentage of planned production time that is truly productive. It was developed to support TPM initiatives by accurately tracking progress towards achieving “perfect production”.

  • An OEE score of 100% is perfect production.
  • An OEE score of 85% is world class for discrete manufacturers.
  • An OEE score of 60% is fairly typical for discrete manufacturers.
  • An OEE score of 40% is not uncommon for manufacturers without TPM and/or lean programs.

OEE consists of three underlying components, each of which maps to one of the TPM goals set out at the beginning of this topic, and each of which takes into account a different type of productivity loss.

ComponentTPM GoalType of Productivity Loss
AvailabilityNo StopsAvailability takes into account Availability Loss, which includes all events that stop planned production for an appreciable length of time (typically several minutes or longer). Examples include Unplanned Stops (such as breakdowns and other down events) and Planned Stops (such as changeovers).
PerformanceNo Small Stops or Slow RunningPerformance takes into account Performance Loss, which includes all factors that cause production to operate at less than the maximum possible speed when running. Examples include both Slow Cycles, and Small Stops.
QualityNo DefectsQuality takes into account Quality Loss, which factors out manufactured pieces that do not meet quality standards, including pieces that require rework. Examples include Production Rejects and Reduced Yield on startup.
OEEPerfect ProductionOEE takes into account all losses (Availability Loss, Performance Loss, and Quality Loss), resulting in a measure of truly productive manufacturing time.

For a complete discussion of OEE, including information on how to calculate Availability, Performance, Quality, and OEE visit our dedicated OEE (Overall Equipment Effectiveness) page.

As can be seen from the above table, OEE is tightly coupled to the TPM goals of No Breakdowns (measured by Availability), No Small Stops or Slow Running (measured by Performance), and No Defects (measured by Quality).

It is extremely important to measure OEE in order to expose and quantify productivity losses, and in order to measure and track improvements resulting from TPM initiatives.

Benefits of Automated OEE Tracking

Manually calculating OEE is a great way to start. It can be done with pencil and paper or with a simple spreadsheet, and only five pieces of data are needed (Planned Production Time, Stop Time, Ideal Cycle Time, Total Count, and Good Count). Performing manual OEE calculations helps reinforce the underlying concepts and provides a deeper understanding of OEE. However, there are also very strong benefits to quickly moving to automated OEE data collection:

ItemBenefit
Stop TimeThe accuracy of manual unplanned stop time tracking is typically in the range of 60 to 80% (based on real-world experience across many companies). With automatic Run/Down detection, this accuracy can approach 100%.
Small Stops and Slow CyclesFor most equipment it is impossible to manually track slow cycles and small stops. This means that a great deal of potentially useful information, such as time-based and event-based loss patterns, is not available.
Operator FocusFor most equipment it is impossible to manually track slow cycles and small stops. This means that a great deal of potentially useful information, such as time-based and event-based loss patterns, is not available.
Real-Time ResultsAutomated data collection provides results in real-time, enabling improvement techniques such as SIC (Short Interval Control).

Creating a “Best of the Best” OEE Goal

An interesting question is how to set an effective “stretch” goal for OEE. As it happens, there is an excellent technique for doing so called “Best of the Best”. Here is how it works:

  1. Track OEE (including Availability, Performance, and Quality) for the target equipment for one month. Make sure to compile the results by shift.
  2. Review every shift result, keeping track of the best individual result for Availability, Performance, and Quality across all shifts (i.e., the highest Availability score across all shifts, the highest Performance score across all shifts, etc.).
  3. Multiply the best individual results together to calculate a “Best of the Best” OEE score.

This newly calculated “Best of the Best” OEE score represents the stretch goal – derived from the best results actually achieved across the month for Availability, Performance, and Quality.

Understanding the Six Big Losses

OEE loss categories (Availability Loss, Performance Loss, and Quality Loss) can be further broken down into what is commonly referred to as the Six Big Losses – the most common causes of lost productivity in manufacturing. The Six Big Losses are extremely important because they are nearly universal in application for discrete manufacturing, and they provide a great starting framework for thinking about, identifying, and attacking waste (i.e., productivity loss).

Six Big LossesOEE CategoryExamplesComments
Unplanned StopsAvailability LossTooling Failure, Unplanned Maintenance, Overheated Bearing, Motor FailureThere is flexibility on where to set the threshold between an Unplanned Stop (Availability Loss) and a Small Stop (Performance Loss).
Setup and AdjustmentsAvailability LossSetup/Changeover, Material Shortage, Operator Shortage, Major Adjustment, Warm-Up TimeThis loss is often addressed through setup time reduction programs such as SMED (Single-Minute Exchange of Die).
Small StopsPerformance LossComponent Jam, Minor Adjustment, Sensor Blocked, Delivery Blocked, Cleaning/CheckingTypically only includes stops that are less than five minutes and that do not require maintenance personnel.
Slow RunningPerformance LossIncorrect Setting, Equipment Wear, Alignment ProblemAnything that keeps the equipment from running at its theoretical maximum speed.
Production DefectsQuality LossScrap, ReworkRejects during steady-state production.
Reduced YieldQuality LossScrap, ReworkRejects during warm-up, startup or other early production.

TPM Example

An excellent way to get a deeper understanding of TPM is to walk through an implementation example. This section provides a step-by-step roadmap for a simple and practical TPM implementation.

Step One – Identify Pilot Area

In this step the target equipment for the pilot TPM program is selected. There are three logical ways to approach this selection.

Which Equipment?ProsCons
Easiest to Improve
  • Best opportunity for a “quick win”.
  • More forgiving of limited TPM experience.
  • Less payback than improving constraint equipment.
  • Does not “test” the TPM process as strongly as the other options.
Constraint/Bottleneck
  • Immediately increases total output.
  • Provides fastest payback.
  • Working on a critical asset as a trial project is a higher risk option.
  • May result in equipment being offline more than desired as it is improved.
Most Problematic
  • Improving this equipment will be well-supported by operators.
  • Solving well-known problems will strengthen support for the TPM project.
  • Less payback than improving constraint equipment.
  • Unsolved problems are often unsolved for a reason – it may be challenging to get good results.

Here are some additional guidelines:

  • For a company with limited TPM experience and/or support (whether through internal staff or external consultants) the best choice is usually the Easiest to Improve equipment.
  • For a company with moderate or strong TPM experience and/or support (whether through internal staff or external consultants) the best choice is almost always the Constraint/Bottleneck equipment. The key is to minimize potential risk by building temporary stock and otherwise ensuring that unanticipated stop time can be tolerated.
  • Teams often gravitate to selecting the Most Problematic equipment. This, however, is rarely the best choice (unless it happens to also be the Constraint/Bottleneck).

In order to create a wide base of support for the TPM project, make sure to include the full spectrum of associated employees (operators, maintenance personnel, and managers) in the selection process, and work hard to create a consensus within the group as to the equipment selection choice.

Once the pilot area has been selected, create a local visual focus for the project (e.g., a project board) where plans and progress updates can be posted.

Step Two – Restore Equipment to Prime Operating Condition

In this step, the equipment will be cleaned up and otherwise prepped for improved operation. Two key TPM concepts will be introduced:

  • 5S
  • Autonomous Maintenance

First, a 5S program should be initiated (including both operators and maintenance personnel).

ItemDescription
PhotographTake photographs that capture the initial state of the equipment and post them on the project board.
Clear AreaClear the area of debris, unused tools and components, and any other items that are not needed.
OrganizeOrganize remaining tools and components onto shadow boards (boards containing outlines as visual cues).
Clean UpThoroughly clean the equipment and surrounding area (including residue from any leaks or spills).
PhotographTake photographs that capture the improved state of the equipment and post them on the project board.
ChecklistCreate a simple 5S checklist for the area (creating Standardized Work for the 5S process).
AuditSchedule a periodic audit (first daily, then weekly) to verify that the 5S checklist is being followed. During the audit, update the checklist as needed to keep it current and relevant. Keep audits positive and motivational (treat them as a training exercise).

Next, an Autonomous Maintenance program should be initiated. Strive to build a consensus between operators and maintenance personnel on which recurring tasks can be productively performed by operators. In many cases, light training will be required to bring up the skill level of operators.

ItemDescription
Inspection PointsIdentify and document key inspection points (all wear parts should be included). Consider creating a map of inspection points as a visual aid.
VisibilityReplace opaque guarding with transparent guarding in cases where inspection points are obscured (where feasible and safe to do so).
Set PointsIdentify and document all set points and their associated settings. Consider indicating settings directly on the equipment as a visual aid for inspection and auditing.
Lubrication PointsIdentify and document all lubrication points. Schedule lubrication to occur during changeovers or other planned stops (in other words, avoid creating new sources of unplanned stop time). Consider externalizing lubrication points that are difficult to access or that require stopping the equipment (where feasible and safe to do so).
Operator TrainingTrain operators to bring any anomalies or emerging conditions to the attention of the line supervisor.
Create ChecklistCreate a simple Autonomous Maintenance checklist for all inspection, set point, lubrication, and other operator-controlled maintenance tasks (creating Standardized Work for the Autonomous Maintenance process).
AuditSchedule a periodic audit (first daily, then weekly) to verify that the Autonomous Maintenance checklist is being followed. During the audit, update the checklist as needed to keep it current and relevant. Keep audits positive and motivational (treat them as a training exercise).

Step Three – Start Measuring OEE

In this step, a system is put into place to track OEE for the target equipment. This system can be manual (refer to www.oee.com for detailed information about performing manual OEE calculations) or automated (such as Vorne’s XL Productivity Appliance™), but the scope of the system must include unplanned stop time reason code tracking.

For most equipment, the largest losses are a result of unplanned stop time. Therefore, it is strongly recommended to categorize each unplanned stop event to get a clear picture of where productive time is being lost. It is also recommended to include a category for “unallocated” stop time (i.e., stop time where the cause is unknown). Providing a category for unallocated stop time is especially important with manually tracked OEE. It improves accuracy by providing operators with a safe option when the stop time reason is not clear.

Data should be gathered for a minimum of two weeks to identify recurring reasons for equipment unplanned stop time, and to identify the impact of small stops and slow cycles. Review the data during each shift to ensure that it is accurate and to verify that the true causes of unplanned stop time are being captured.

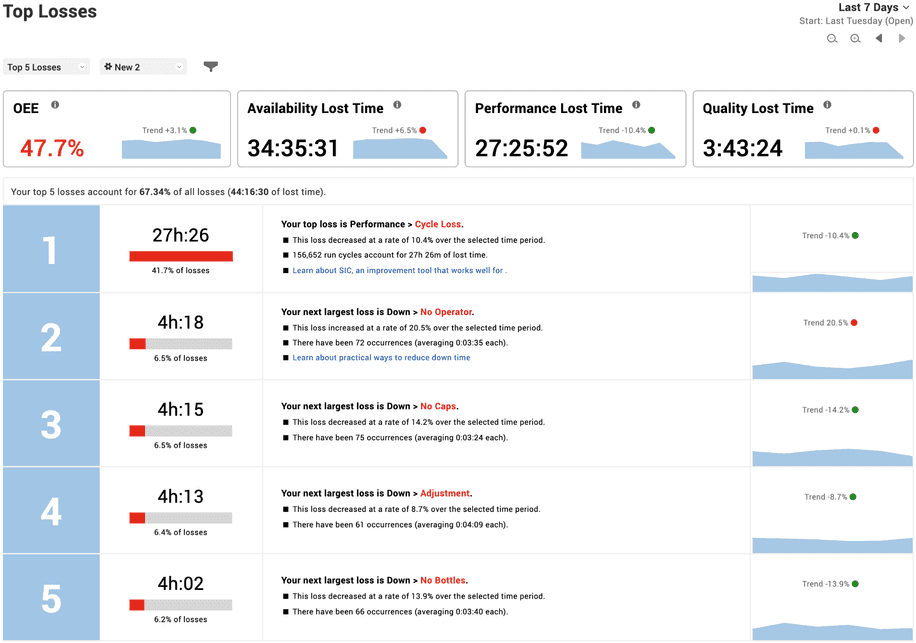

Report of Top 5 Losses in manufacturing accounting for 66.88% of all losses.
A Top Loss report is an excellent way to visualize the reasons for lost production. In this example, the top loss is an unplanned stop event called “Infeed Material Jam”.

Step Four – Address Major Losses

In this step, the most significant sources of lost productive time are addressed. The TPM concept of Focused Improvement (also known as Kaizen) is introduced.

ItemDescription
Select LossBased on equipment-specific OEE and stop time data, select one major loss to address. In most cases, the major loss that is selected should be the largest source of unplanned stop time.
Create TeamCreate a cross-functional team to address the problem. This team should include four to six employees (operators, maintenance personnel, and supervisors) with the best equipment knowledge and experience…and that are likely to work well together.
Collect InformationCollect detailed information on symptoms of the problem, including observations, physical evidence, and photographic evidence. Consider using an Ishikawa (fishbone) diagram at the equipment to collect observations.
OrganizeOrganize a structured problem solving session to: a) identify probable causes of the problem, b) evaluate probable causes against the gathered information, and c) identify the most effective fixes.
ScheduleSchedule planned stop time to implement the proposed fixes. If there is an existing change control process, be sure to utilize that process when implementing fixes.
RestartRestart production and determine the effectiveness of the fixes over an appropriate time period. If sufficiently effective, document any changes to procedures and move on to the next major loss. Otherwise, collect additional information and organize another structured problem solving session.

During this step, OEE data should continue to be carefully reviewed each shift to monitor the status of losses that have already been addressed, as well as to monitor overall improvements in productivity.

Step Five – Introduce Proactive Maintenance Techniques

In this step, proactive maintenance techniques are integrated into the maintenance program (thus introducing the TPM concept of Planned Maintenance).

First, identify all components that are candidates for proactive maintenance:

ItemDescription
Components that WearIdentify and document all components that undergo wear (these should have been established as inspection points in Step Two). Consider replacing wear components with low-wear or no-wear versions.
Components that FailIdentify and document all components that are known to regularly fail.
Stress PointsConsider utilizing thermography and/or vibration analysis to provide additional insights as to equipment stress points.

Next, establish initial proactive maintenance intervals:

ItemDescription
Wear BasedFor wear components, establish the current wear level and a baseline replacement interval (in some cases replacement may be triggered early by an Autonomous Maintenance inspection as established in Step Two).
Predicted Failure BasedFor failure-prone components, establish a baseline (predicted) failure interval.
Time BasedCreate a baseline Planned Maintenance Schedule that schedules proactive replacement of all wear and failure-prone components. Consider using “Run Time” rather than “Calendar Time” as the interval time base.
Work Order BasedCreate a standard process for generating Work Orders based on the Planned Maintenance Schedule.

Next, create a feedback system for optimizing the maintenance intervals:

ItemDescription
Component LogCreate a Component Log sheet for each wear and failure-prone component. Record every instance of replacement, along with information about the component condition at the time of replacement (e.g., wear amount, “component failed”, “no observable issues”, etc.).
Monthly AuditPerform a monthly Planned Maintenance audit: a) verify that the Planned Maintenance Schedule is being followed, b) verify that the Component Log sheets are being maintained, and c) review all new entries in the Component Log and adjust maintenance intervals where appropriate. Keep audits positive and motivational (treat them as a training exercise).
Maintenance Interval AdjustmentsAnytime there is an unscheduled component replacement, consider adjusting the maintenance interval. If the component is not on the Planned Maintenance Schedule, consider adding it.
Component AnalysisConsider plotting data over time from thermography and vibration analysis to expose emerging problems and issues.

Additional TPM Activities

The Simplified Roadmap is optimized to provide an incremental, step-by-step approach to implementing TPM. So, what comes next in the TPM journey?

There are an additional four TPM activities that are not within the scope of the Simplified Roadmap. The question then becomes, when should these activities be introduced? In keeping with the incremental, step-by-step approach, selection of new activities should be prioritized based on whatever is the most pressing and urgent need.

TPM ActivityIntroduce When...
Quality MaintenanceQuality is at the forefront of issues facing the company. This may be a result of a) significant customer issues being raised over quality or b) significant internal concerns being raised over quality (e.g., unsatisfactory first-pass yield).
Early Equipment ManagementNew equipment is being designed or installed in a constraint/bottleneck area.
Safety, Health, EnvironmentThe company a) has no substantive Safety, Health, Environment program, or b) the existing program would significantly benefit from being linked into existing TPM activities.
TPM in AdministrationAdministrative issues (e.g., delays in processing customer orders or invoices, issues with part procurement) are one of the largest impediments to smoothly running production.

Sustainable Improvement

One of the greatest challenges at any company is how to achieve sustainable improvement. This includes both a) achieving short-term success and b) maintaining that success over the long-term. This section outlines four techniques for achieving sustainable improvement.

  • Engaging Employees
  • Succeeding Early
  • Providing Active Leadership
  • Evolving the Initiative

Engaging employees is important for both short-term and long-term success of initiatives. A powerful technique for engaging employees is creating a shared vision of the future “improved” state of the company – and clearly outlining how it will benefit employees. This will create a strong, broad-ranging motivation to succeed. Another powerful technique is recognizing and rewarding desired behavior. In the context of TPM, this may include providing a monthly rotating trophy for the Best 5S Area or awarding gift certificates each month for the Biggest Kaizen Improvement.

Succeeding early helps to ensure long-term success by building momentum behind the initiative. By way of contrast, if an initiative is perceived as having been tried and failed, it will be much harder to successfully implement that initiative in the future.

Providing active leadership is one of the primary responsibilities of senior management (up to and including the Plant Manager). It means regularly demonstrating the importance of TPM activities through words and actions. Active leadership combats the natural tendency of employees to drift back into old patterns of behavior and old ways of working. It continually feeds new energy into the initiative, which over time is absorbed by employees in the form of new ingrained behaviors.

Evolving the initiative applies continuous improvement techniques to ensure that it does not become stale and that employees do not become complacent. The goal is to keep the initiative fresh and interesting. Evolving the initiative also helps to ensure that it thrives over the long-term by constantly adapting it to a changing environment.

WHAT YOU SHOULD DO NEXT...

1. Learn more about how our product, Vorne XL, can help you eliminate waste and significantly improve OEE.

Vorne XL is the simplest and fastest way to monitor and improve production. It's a one-time cost and takes just a day to install. And you can try it completely free for 90 days.

Learn More

2. Download our FREE package of tools to supercharge your manufacturing productivity

The package includes leadership lessons, training guides, meeting and report templates, summaries of key concepts, project organizers, and more. You'll also receive our monthly newsletter for free. Unsubscribe at any time.

DOWNLOAD FREE LEAN TOOLS

3. Sign up for our monthly newsletter

Get free monthly updates with proven methods for improving our manufacturing productivity. Unsubscribe at any time.
